We design and manufacture a wide range of circlips. Used as a fastener, these products are semi-flexible metal ring that comes with open ends. We offer both the types of circlips that are internal and external. The different kinds of circlips offered by us can vary in terms of dimensions and type of raw materials used. We also manufcaturer and supply Snap Ring and Horse Clamp
| External Circlip DIN
: 471 IS : 3075 |
||
 |
 External Circlips |
 |
 |
 |
 |
| All Dimensions in Millimeters
|
||
| Internal Circlip DIN : 472 IS : 3075 | ||
 |
 Internal Circlips |
 |
 |
 |
 |
| All Dimensions in Millimeters |
||
Snap Ring DIN : 5417
Snap rings required for securing bearing with ring groove.

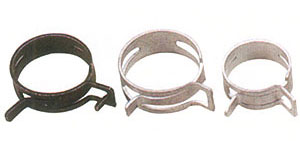

Horse Clamp DIN : 3021
Made by high manganese steel and designed on basis of DIN 3021 standard makes it disassemble easily and quickly.
|
Normal Size mm |
Closed Diameter mm |
Open Diametermm |
Normal Size mm |
Closed Diameter mm |
Open Diameter mm |
|
13 |
12.0 |
14.2 |
32 |
29.5 |
34.5 |
|
14 |
13.5 |
15.3 |
35 |
31.5 |
38.0 |
|
15 |
14.0 |
16.8 |
38 |
34.5 |
41.5 |
|
17 |
15.2 |
18.5 |
40 |
35.5 |
42.5 |
|
19 |
18.0 |
20.0 |
42 |
37.5 |
44.5 |
|
20 |
18.4 |
21.6 |
44 |
38.5 |
46.5 |
|
23 |
21.0 |
24.7 |
47 |
41.5 |
50.0 |
|
24 |
22.0 |
26.0 |
50 |
43.5 |
53.0 |
|
25 |
23.0 |
26.8 |
51 |
44.0 |
54.0 |
|
26 |
24.3 |
28.0 |
53 |
46.0 |
55.0 |
|
27 |
25.2 |
28.9 |
55 |
47.0 |
58.0 |
|
29 |
27.0 |
31.5 |
58 |
50.0 |
61.0 |
